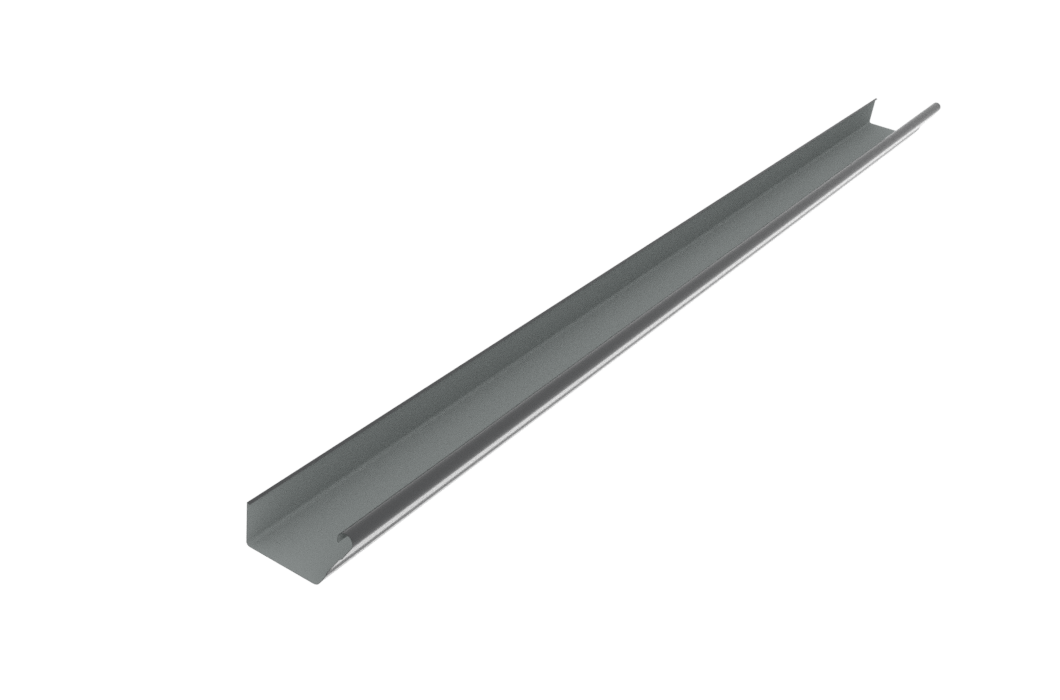

Dimond Deep Quad Gutter

Dimond Deep Quad Gutter

Suitable for residential

Suitable for light commercial

Suitable for commercial

Deep Quad Gutter is manufactured in Rotorua.

If this product is not suitable for your project... Click here to find product options suitable for your requirements.

Dimond Deep Quad Gutter Profile

Deep Quad gutter enhances the design of the traditional quarter round gutter with a bigger flow load capacity for higher rain areas.

Dimond Deep Quad Gutter Profile

Dimond Deep Quad Gutter Profile Dimensions

All dimensions given are nominal

Effective cross sectional area (with 10mm free board)

6700mm²

Flow capacity

97 litres/min

Minimum recommended fall

1:500 (2mm in 1m)

Minimum downpipe - circular

63mm

Minimum downpipe - rectangular

min. cross sectional area of 3250mm², smallest dimension at least 50mm

Catchment area per downpipe based on the above flow capacity is given in the following table.

Rainfall Intensity (mm/hr) 40 50 60 70 80 90 100 120 140 160 180 200
Catchment Area per downpipe (m²) 145 116 97 83 73 65 58 48 41 36 32 29

Material options including thickness and grade

Steel

0.55mm G300

Aluminium

0.90mm H34

Roll-forming facility

Rotorua

Bracket Material Thickness
Internal Aluminium* 2.0mm

* when using aluminium internal brackets the roofing may need to be 10mm longer into the gutter.

Recommended maximum spacings

900mm spacing (600mm maximum is recommended where snow fall is possible)

Recommended fixings

Screw or nail fastenings to be compatible to substrate and bracket material

Scope of Use

Dimond Rainwater Disposal Systems are intended to collect and channel water that runs off a roof. It is intended that the metal gutters be placed at the perimeter of the building, and not in an internal situation.
Use of the products is subject to the limitations listed below.

Requirements

Attention to the following details is required to ensure the expected system performance is achieved.

  • The selection of the type and grade of gutter and bracket material and fasteners must be based on the life expectancy required and the severity of the external and internal environments. Refer Sections 2.1.1.2, 2.1.1.3, 2.1.1.4, 2.2.3 of Roofing & Cladding Technical Manual.
  • Site storage that keeps the product dry and protected from damage.
  • Product handling that prevents surface damage.
  • Correct installation of the brackets and gutter.
  • Allowance for thermal expansion and contraction.
  • Sufficient fall to permit complete surface water drainage, allowing the gutter to completely dry out and not hold water.
  • Control of allowable contact with dissimilar materials. Refer Section 2.1.3.3 of Roofing & Cladding Technical Manual.
  • Awareness and implementation of maintenance requirements, particularly for surfaces not washed by natural rainfall. Refer Section 2.1.1.3 Roofing & Cladding Technical Manual.

NZBC Compliance

Test information available from Pacific Coil Coaters and BHP NZ Steel, and past history of rainwater products, indicate that provided the product use and maintenance is in line with the guidelines contained in the current literature referenced, Dimond Rainwater Disposal Systems can be expected to meet the performance criteria in Clause E2 of the New Zealand Building Code, for a period of not less than 5 years.

Use Outside the Stated Guidelines

If the need arises to use Dimond Rainwater Disposal Systems outside the limitations and procedures given in this or other referenced literature, or, if any doubt exists on product handling or use, written approval for use must be obtained from Dimond, before the project commences.
